ARGO

The new standard for broadcast audio

Argo Nobg

The Calrec Argo line offers a range of flexible and intuitive audio consoles designed to adapt to different production needs. With modular designs and customisable interfaces, they are ideal for live broadcasts and studios, providing efficient control and easy operation.

Main features

• Modular and customisable design

Allows users to configure the console with physical control modules, adapting it to the specific needs of each production.

• Native IP support

Compatible with protocols such as ST 2110, AES67 and NMOS, facilitating integration into IP-based workflows.

• Intuitive user interface

Features an advanced touchscreen interface, with controls that can be customised for different operations and users.

• Scalability and expandability

Available in various configurations, easily adjusting to productions of different sizes and complexities.

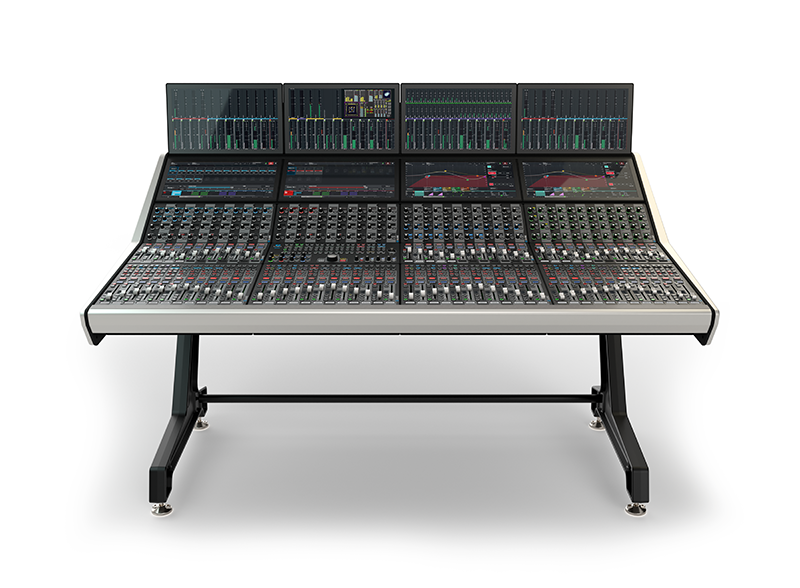

Calrec Audio Argo Q Front 800X800 1 (1)

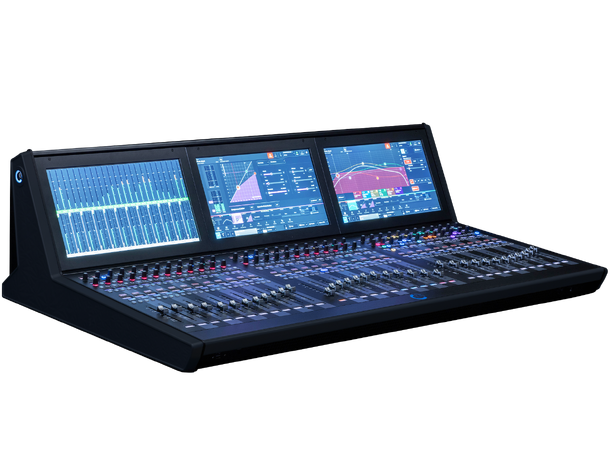

WEB Image Calrec Argo M 36F Broadcast Mikser Compa Argo M 36 02459281223 Plid 57950

Main benefits

• Total flexibility

The modular design allows users to adapt the console to their specific needs, whether for large studio productions or live broadcasts.

• Future-proof

Compatibility with IP and advanced standards makes Argo a future-proof solution for modern productions.

• Operational efficiency

The intuitive and customisable interface reduces training time and improves team productivity.

• Unlimited connectivity

Integration with various audio protocols and technologies guarantees compatibility with existing infrastructures, reducing adaptation costs.

Designed to adapt to changing production needs

Argo S Front

Overview

Argo is Calrec's new approach to audio mixing and the result of 60 years of experience and research and development into Broadcast audio production technology. It features native IP connectivity based on industry standards. It features a supercharged Digital Signal Processor with thousands of processing paths and an ultra-modern user-configurable control surface. Argo is the ultimate audio console for all types of audio production, catering for a variety of needs, from the biggest global sporting events to automated news environments and flagship entertainment programmes.


The Argo console comes in two sizes; the larger Argo Q model which has two middle rows of interchangeable panels and the compact Argo S model which has one middle row.

Features

  • Calrec Argo S Faders 870 × 725Px 566X472
    Flexible, simple & intuitive all-new surface design
    Up to 240 faders per system. Short learning curve with familiar Assist application. Intuitive use of colour and digital scribble strip.
  • Argo S Front 566X472
    Any panel, anywhere
    Choose from dual fader, rotary control, monitoring or loudspeaker panels - all panels are interchangeable within the same frame and between Argo Q & Argo S.
  • IP News Hub 3 566X472
    Supercharged DSP
    Based on Calrec's ImPulse core with max DSP capacity extended to up to 2384 DSP paths for the most demanding, immersive productions.
  • Calrec Assist 870 × 725Px 566X472
    More of what you need, where you need it
    EQ and dynamics now available on all Auxes and Tracks. Addition of stereo automixer, Ducker and variable slopes.
  • Faders On Calrec Assist 870 × 725Px 566X472
    Remote control
    Calrec’s Assist application is built into Argo, along with remote surface options and True Control.
  • IP 566X472
    IP native and IT friendly
    From the ground up, Argo is IP-native based on ST2110 with surface sections and surface to core links on standard COTS switches.
  • Assist On Argo 870 × 725Px 566X472
    Resilient & redundant
    Argo has no system PC. Each section is fully self-sufficient, and of course, dual PSUs, dual control links and ST2022-7 as standard.
  • Wild Assign Panel 870 × 725Px 566X472
    Configurable
    Simple UI for customising unique user controller layouts.
  • RTW TM9 Immersive Frei 1 570X439
    Integrated
    Fanless surface mounted I/O options, video input per meter screen for Waves, 3rd party meters (RTW) or preview monitor.
