Tieline Gateway

The Tieline Gateway is the most powerful DSP-based 1RU IP codec that allows multiple channels of mono or stereo audio to be transported over the public Internet and any QoS-enabled IP network,

The Gateway transmits up to 16 IP audio channels and speaks the language of AES67, ST 2110-30, ST 2022-7, RAVENNA, Livewire+, NMOS, Ember+, AES3 and analogue I/O as standard and optional Dante.

Gateway Perpect Trans2 1024X294

The Tieline Gateway is an advanced IP codec developed for high-quality audio transmissions, with a focus on professional broadcast and radio applications. Designed for studios and remote operations, Tieline Gateway offers flexibility, efficiency and reliability by supporting multiple simultaneous live audio streams while maintaining exceptional quality standards.

Main features

• Support for multiple channels

Ability to encode and decode up to 16 mono audio streams or 8 stereo streams, depending on the model.

• Compatibility with IP protocols

Support for standard IP protocols such as AES67, ST 2110-30, RTP and HTTP for seamless integration into modern broadcast infrastructures and compatibility with AoIP (Audio over IP) networks.

• High-quality audio

Offers lossless audio coding and efficient compression using codecs such as OPUS, PCM, AAC and MP3 and guarantees crystal-clear audio, even in adverse network conditions.

• Redundancy and reliability

Supports network redundancy via multiple IP interfaces to ensure stable, uninterrupted transmissions.

Gateway Frontandback2

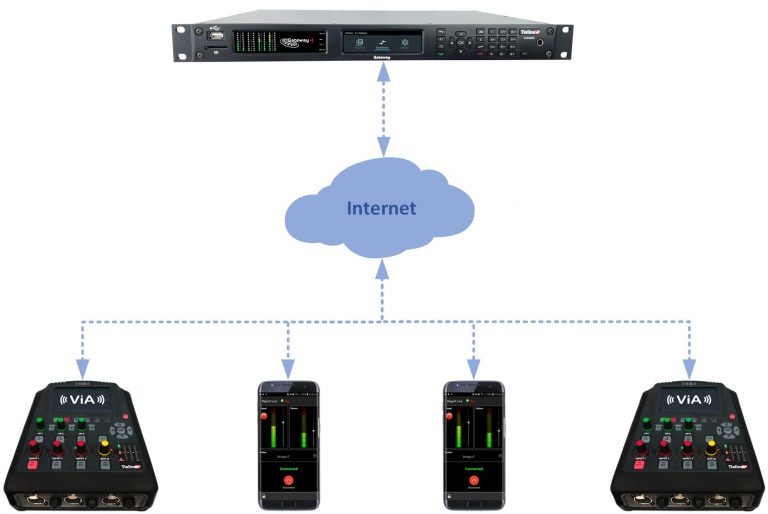

Via Report IT 4 X Mono Use Case Gateway 4 20210121 768X514

Main benefits

• High efficiency and versatility

Transmits multiple audio channels simultaneously, reducing costs and the need for additional equipment.

• High audio quality

Professional broadcast sound quality, essential for radios, studios and critical broadcasts.

• Total reliability

Redundancy features and failover support guarantee stable transmission, even on unstable networks.

• Scalability

Ideal for both small radio stations and large broadcast networks, allowing you to grow as needed.


The Most powerful DSP-based 1RU IP Codec

The Tieline Gateway introduces a new era in high-density multichannel IP codec streaming.

SmartStream PLUS redundant streaming



Connect multiple IP links to codecs and use SmartStream PLUS to stream simultaneous redundant data streams and deliver seamless redundancy when streaming over IP.



Bond multiple interfaces with Fuse-IP



Imagine the peace of mind knowing you can bond data links from different Telcos and let Tieline’s Fuse-IP technology automatically manage the data capability of each link!





The Gateway is ideal for:

- Audio contribution and managing multiple remotes.
- Studio-to-Transmitter Links.
- Network syndication of programming.

- Multi-channel links to remote studios.
- HTTP Icecast or Shoutcast streaming.







Flexible Audio Distribution









 The Gateway supports 16  mono or 8 stereo full-duplex audio streams. Gateway also supports flexible multi-unicasting and multicasting configurations for audio distribution.







- Stream up to 16 different multi-unicast audio streams to up to 80 endpoints in total.



- Stream up to 16 different multicast audio streams to unlimited endpoints over compatible networks





Specifications



Audio



  • Robust dual DSP-based architecture designed for rock solid, mission critical STL audio
  • Linear PCM16/24 bit 32kHz, 44.1kHz, 48kHz, 96kHz sampling
  • Bidirectional mono, 3 mono, 6 mono, 8 mono and 16 mono connections and triple mono connections
  • Distributing up to 16 bidirectional channels between two codecs
  • Up to 8 bidirectional stereo connections.
  • 2 stereo and 2 mono bidirectional connections
  • 1 stereo and 4 mono bidirectional connections.
  • Simultaneously distributing 1, 2, 3, 4, 6, 8, or 16 separate IP multi-unicast audio streams to up to 80 endpoints in total (Gateway-8 and Gateway-16)
  • Broadcasting up to 8-16 separate IP audio streams in multicast server mode and distributing each of these streams to unlimited endpoints over compatible IP networks.
  • Popular algorithms including LC-AAC, HE-AAC v1 and v2, AAC-LD, AAC-ELDv1 and v2, Opus, MPEG II, MPEG Layer-3, Tieline Music and MusicPLUS, G.722 and G.711.
  • Internal SSD storage as standard
  • Low-delay, cascade resilient aptX® Enhanced algorithm
  • Optional WheatNet-IP card
  • Up to 8 stereo or 16 mono WheatNet-IP audio channels in/out.
  • Optional Dante card supports Dante stream management and discovery
  • Input Processing: EQ and dynamic range compressor on all inputs

Connectivity



  • Dual Gigabit (10/100/1000) Ethernet ports support automatic switching for redundancy
  • Dual AoIP ports for AES67, SMPTE ST 2110-30, ST 2022-7, Livewire+, RAVENNA, WheatNet-IP and Dante AoIP streaming
  • Automated failover to backup connections.
  • Support for up to 4 output audio source fail over options
  • SmartStream PLUS dual redundant IP streaming
  • Fuse-IP network bonding (data aggregation)
  • SIP (SDP) compliant with EBU N/ACIP Tech 3326 and 3368 for interoperability with other codecs
  • I3P EBU Tech 3347 integration for Intercom compatibility over IP
  • Deterministic SIP answering and call routing: Configure up to 16 SIP accounts and connect up to 2 SIP interfaces
  • Selectable fixed or automatic jitter buffer: 5 automated settings available to manage network connectivity and avoid dropouts (includes configurable min and max buffer settings).
  • Configurable Forward Error Correction (FEC)
  • Highly advanced error concealment strategies
  • Real-time IP connection packet statistics
  • Real-time IP link quality displayed.
  • Support for Line Hunt dialing/answering and caller IDs using Tieline IP

Operation



  • Full hardware front panel interface including navigation, LCD display, PPM meters and dialing key pad
  • User-friendly HTML5 Toolbox Web-GUI enables codec configuration and control remotely over WANs
  • AES67 Web-GUI for configuration of AES67, ST 2110-30, ST 2022-7, Livewire+ and RAVENNA streams over an AES67 LAN
  • HTTP Icecast or Shoutcast streaming
  • Toolbox Scheduler supports loading/unloading, connecting and disconnecting programs
  • Use the Cloud Codec Controller to configure & manage your entire codec network remotely
  • Auto switching, dual internal AC power supplies
  • IPv4 & IPv6 compatible and ready
  • Asymmetric algorithmic encode/decode
  • Integrated alarm management including automatic silence detection
  • Low latency in-band RS-232 aux data channel
  • Configurable software rules engine via web-GUI for Control Port (16 GPIOs), plus WheatNet-IP LIO compatibility.
  • Upgrade firmware from SD card
  • Automated firmware upgrade notifications via Web-GUI
  • Support for multiple languages: English, Spanish, Portuguese and French*
  • Backward compatible with all Tieline IP codecs

Security



  • User name and password protection of codec and Toolbox HTML5 Web-GUI
  • Support for SSL Security Certificate installation
  • SIP allow lists and deny lists allow filtering of SIP URIs and User Agents.
  • Configuration of non-standard ports
  • Firewall settings to enable or disable a range of firewall-related network services, or limit ping to only work in a local subnet
  • Implementation of CSRF protection (Cross-Site Request Forgery)
  • Cloud Codec Controller supports admin and user level access to codecs with password protection

Features at a Glance

  • Analog
    Analog, AES3
    Support for AES67, plus AES3 (AES/EBU) and analog I/O options.
  • Httpstreaming
    HTTP Streaming
    Support for Icecast or Shoutcast HTTP streaming
  • Intercoms
    SIP and IP Intercoms
    SIP EBU Tech 3326, 3368, and EBU Tech 3347
  • Dualports
    Dual AoIP Ports
    Stream AoIP from dual ports
  • Sdcard
    SD card
    SD card slot for firmware upgrades, storage and SDIO
  • Alarms
    Alarms
    Silence Detection, PSU Failure, Lost connection, Temperature, AES Input, AES Reference, SNMP and more
  • Power
    Dual Internal Power Supplies
    Dual power supplies provide backup if one fails
  • Ehthernet
    Dual Ethernet Ports
    Connect using different Telcos for diversity using SmartStream PLUS redundant streaming
  • Module
    Module Compatible
    Module slot for future hardware innovations
  • Unicast
    Multi-Unicast
    Support for multiple simultaneous multi-unicasts over compatible IP networks to up to 80 endpoints
  • Simmulticast
    Simultaneous Multicast
    Support for multiple simultaneous multicasts over compatible IP networks to unlimited endpoints
  • Phaselock
    Phase-locked streaming mode
    Up to 8 channels of digital phase-locked multichannel audio, including 6 channel (5.1 or 6.0), 8 channel (7.1 or 8.0), and 4 channel phase-locked surround sound streams.
  • SSD
    Internal SSD Storage
    Internal Storage supports record, store and forward use cases for network syndication applications
  • Backup
    Expanded Backup Options
    Multiple levels of power, audio and network redundancy. The codec features dual Gigabit Ethernet ports, dual internal power supplies, automated audio silence detection and IP network backup solutions to ensure you’re always on the air.
