QuickLink StudioPro

The world's easiest-to-use 4K video production platform

Enjoy a realistic, ultra-low latency production experience without the complexity of traditional systems.

Studiopro 4U Fusion Combined A2 Transparent Scaled

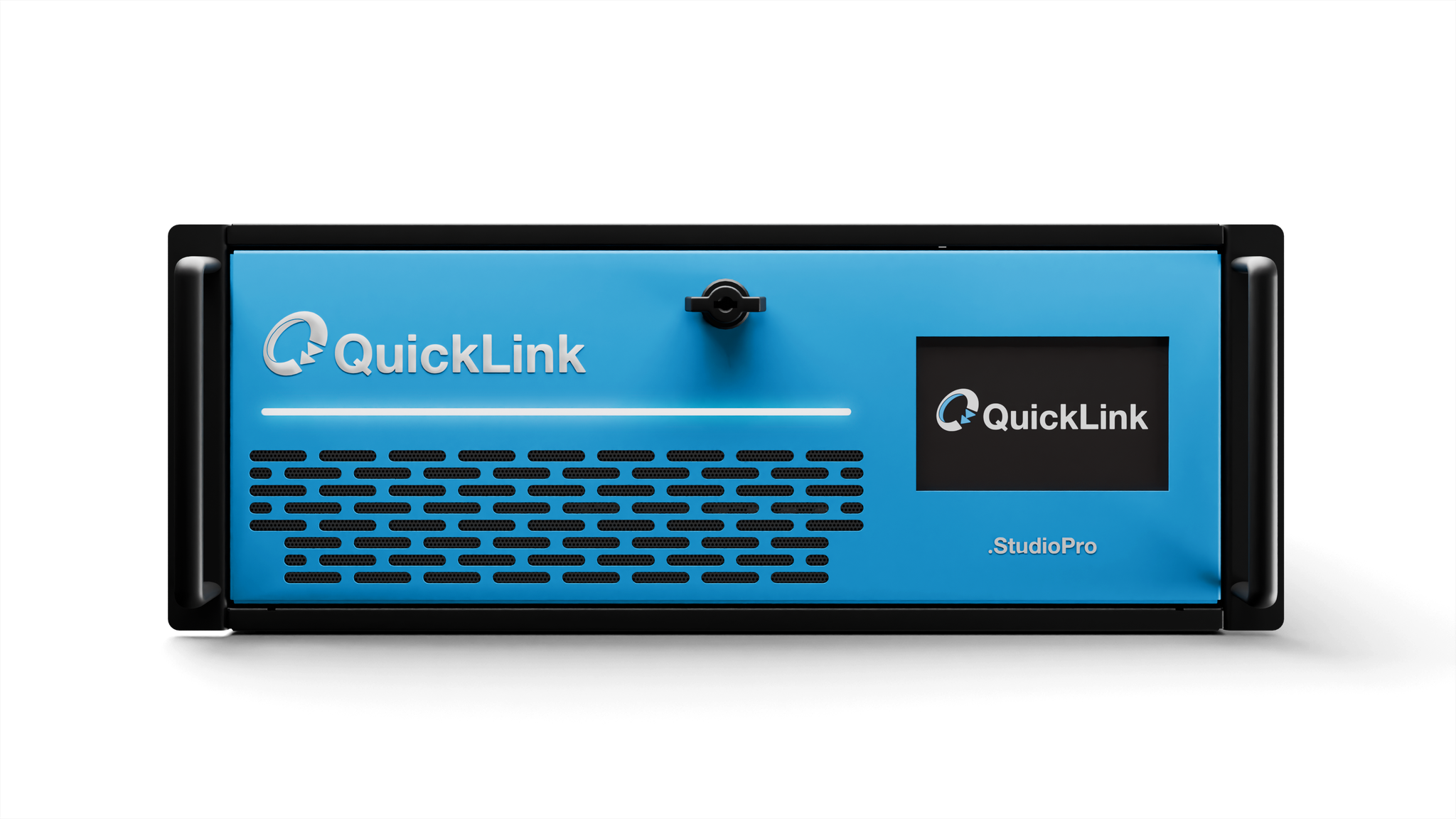

StudioPro, by QuickLink, is the all-in-one 4K video production solution designed for demanding professional environments such as Broadcast, live events, and corporate communications.
It enables the integration of remote guests via Zoom, Teams, WhatsApp, and more, with ultra-low latency and perfect synchronization.
Supports multiple simultaneous signals including SDI up to 12G, NDI, SRT, RTMP, Dante, analog and IP audio, offering maximum operational flexibility.
Available in scalable models with support for up to 64 PTZ cameras, 16 DSK channels, and 8 simultaneous streaming outputs, among other features.

Main features

• Compatibility with NDI, SDI, and IP

Easily integrates into existing broadcast workflows with support for professional standards.

• ISO recording of each source

Individual recording of each audio and video feed for post-production or redundancy.

• Support for multiple platforms

Compatible with Teams, Zoom, WebRTC, and standard browsers, no additional software required.

• Integrated audio processing

Equalizer, compressor, limiter, and noise gate can be applied individually to each guest.

• Video and audio return (IFB)

Low-latency return signals sent to the guest with precise control.

4Fjd5hua
Tqxjgegq

Main benefits

• Professional production with Broadcast-quality output

Enables the creation of 4K/8K content, ideal for broadcasters, studios, universities and institutions that demand the highest image and sound quality.

• Intuitive and autonomous operationScene-based interface simplifies multi-camera production, even for non-technical operators.

• Minimal latency for perfect synchronization

With only 1 frame of delay, it ensures a real-time viewing experience.

• Simultaneous streaming and recording

Supports streaming to multiple platforms (YouTube, Facebook, SRT, RTMP...) while individually recording all sources (ISO recording) for post-production.

Control Panels

Characteristics:

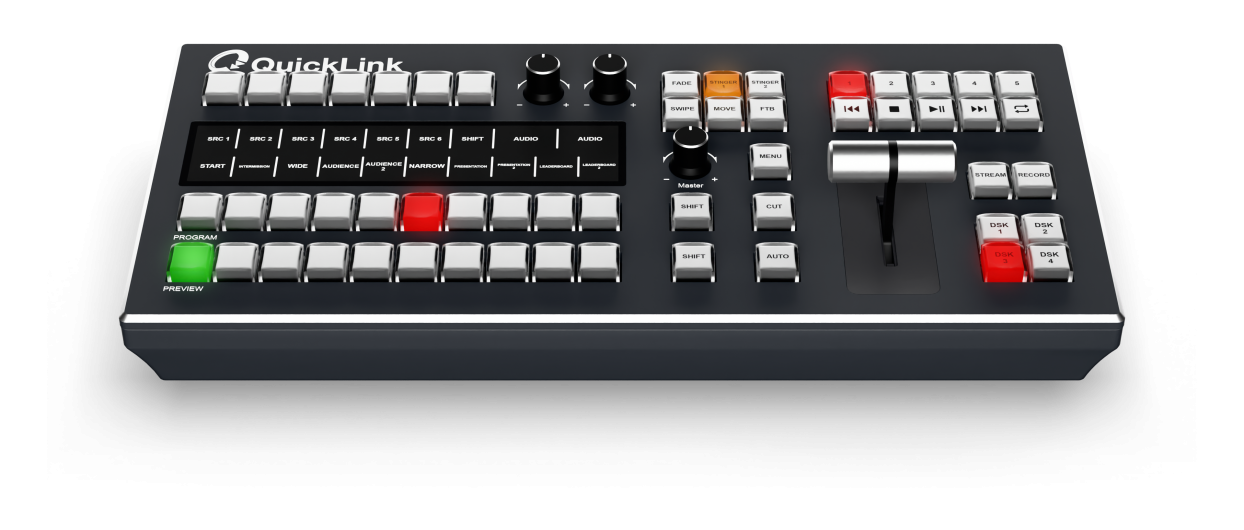

StudioPro™ Proton



  • Total number of buttons: 54 tactile buttons

  • Configurable buttons: 27 of the 54 are fully configurable

  • T-Bar for transitions: Includes a responsive T-Bar for controlling transitions

  • Chassis / build: Anodized aluminum alloy structure; built to be robust and portable

  • Weight and dimensions: Approximately 3.3 lbs (≈ 1.5 kg) and about 12.9 inches wide (≈ 32.7 cm)

  • Tally interface (on-air signaling): Wired Tally interface using DB25 connector

  • External device control support: Integrates with over 600 external devices (cameras, lighting, audio mixers, media players…) via Bitfocus Companion

  • Button types / special keys: Illuminated buttons, tri-color crystal keys

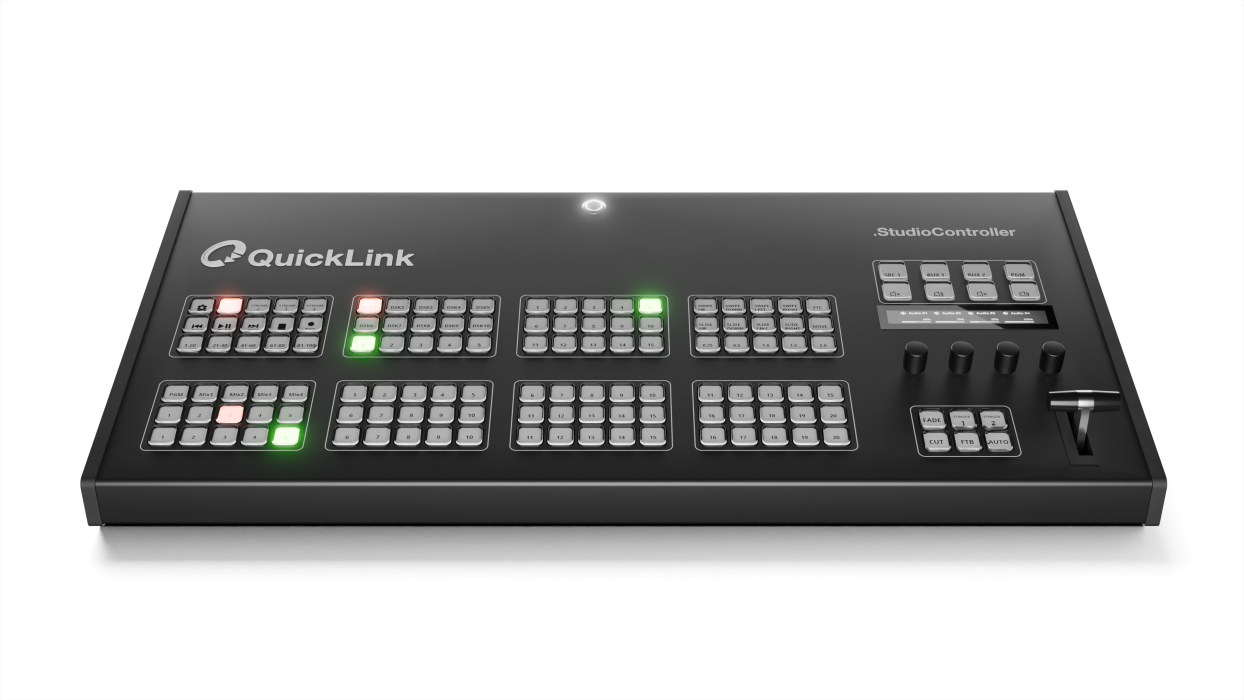

StudioPro™ Fusion



  • Total number of buttons: 113 tactile buttons

  • Configurable buttons: 80 of the 113 are fully customizable

  • Built-in display: 5.5-inch LCD for real-time feedback, system status, and menus

  • PTZ joystick: 4-D joystick (pan, tilt, zoom + direction) for precise PTZ camera control

  • T-Bar & LED feedback: Ergonomic T-Bar with 9-level LED feedback

  • Mixes / mixed outputs: Supports multiple independent mix outputs

  • Tally interface: Also uses DB25 for wired Tally; on-air visual signaling support

  • External connectors / protocols: RS-232, RS-422/485 for camera control; LAN with PoE+; 12V DC power input

  • Control zones / special buttons: Buttons for PVW/PGM scenes, transitions (CUT, MIX, FADE, WIPE, STINGER, DVE, etc.), knobs for parameter adjustments, media playback, and macros

Control Panels
Control Panels

Multicamera production and real-time switching

Switch between multiple cameras, NDI sources, videos, and remote guests in real time. StudioPro offers an intuitive virtual control room with visual layering and professional transitions for dynamic, high-impact productions.





One-frame delay



Synchronize flawlessly between stage speakers and large projected screens or video walls for live presentations. StudioPro eliminates lip-sync issues.

Remote Guest Integration



Take remote guest integration to unprecedented heights with built-in StudioEdge. Microsoft Teams, Skype, Zoom, WhatsApp, and more!

Capture Unlimited Devices



Effortlessly integrate unlimited cameras, microphones, videos, NDI sources, and remote guests into your productions. Create productions like a pro.





Utilize your existing skills for broadcasting



Produce amazing ‘scenes’, like creating presentation slides. Add multiple layers and switch effortlessly between scenes, much like Microsoft PowerPoint or Adobe Photoshop.
